Empirical Labs Mike-E EL9

Empirical Labs Mike-E EL9

Made to Order


$1,699.00 - $1,699.00
De:

Por: $1,699.00
ENTREGA NO BRASIL:
+ frete + taxa importação
$1,699.00 - $1,699.00
Por: $1,699.00

In the modern era of digital recorders, DAWs and software plug-ins, Mike-E is the ultimate solution for getting a clean, strong, yet warm and musical signal in the box... and it couldn't be easier to wor... Veja mais

Do you want to purchase this product with all the convenience and support in Portuguese? Get in touch for more information and place your order.

Entrega:

Shipping to Brazil: Product Value + Shipping + Import Fees.

Get in touch to simulate the final value.

receive your order

Directly from USA

Pay in up to 12 installments

By credit card or PIX

Service in Portuguese
Support and Warranty

In Brazil

In the modern era of digital recorders, DAWs and software plug-ins, Mike-E is the ultimate solution for getting a clean, strong, yet warm and musical signal in the box... and it couldn't be easier to work with - your front The panel layout is so simple that even inexperienced engineers will have no problem moving it around right away.

When the engineering team at Empirical Labs sets out to build a microphone preamp, you can be assured that it will deliver spectacular sound, be easy to work with, and provide features unlike any other device in its class. To that end, we proudly present the Mike-E, a high-performance transformer-coupled microphone preamplifier with a noise level far below that of any microphone, combined with a unique compressor/saturator circuit that delivers knee-jerk compression. classic as well as a versatile tonal 'coloring' that can replicate many of the best features of vintage analogue recording equipment.

Microphone preamplifier

The Mike-E features a super low noise transformer input amplifier section with gain under precise digital control. The signal-to-noise ratio far exceeds any existing microphone. Having used many mic preamps over the years, we have implemented a unique stepped gain control that should be immune to the normal instability that age causes in potentiometers and hold-down switches. A bad one!" LED indicates when the input signal is overloading the circuit.

CompSat™

CompSat's unique circuitry sets the Mike-E apart from all other microphone preamps.

SATURATOR – a multi-stage soft-clipping circuit. At lower levels, a triode-like saturation affects the signal. As the level increases, a second unique clip circuit begins to flatten the peaks more severely.

COMPRESSOR – based on ELI's world famous Distressor, but with other features (including a much longer attack time). Preset aspect ratios include: 2:1, 4:1, 8:1… and of course Nuke.

EMPHASIS – a two-stage circuit that smoothly boosts and cuts high frequencies before the CompSat™ circuit and then cuts frequencies after it. Emphasis has the added advantage of improving signal over noise and is the reason why analog tape decks used emphasis to begin with.

Specifications

  • Frequency response – 3 Hz to 200 kHz enabled (without CompSat). CompSat is 3Hz – 150Khz. Optional transformer output is 6 Hz to 80 kHz.
  • Signal to noise – 130 dB signal to noise. With 40 dB gain. Maximum output is +28dBu.
  • Distortion – Varies between 0.0006% and 15% depending on mode and settings.

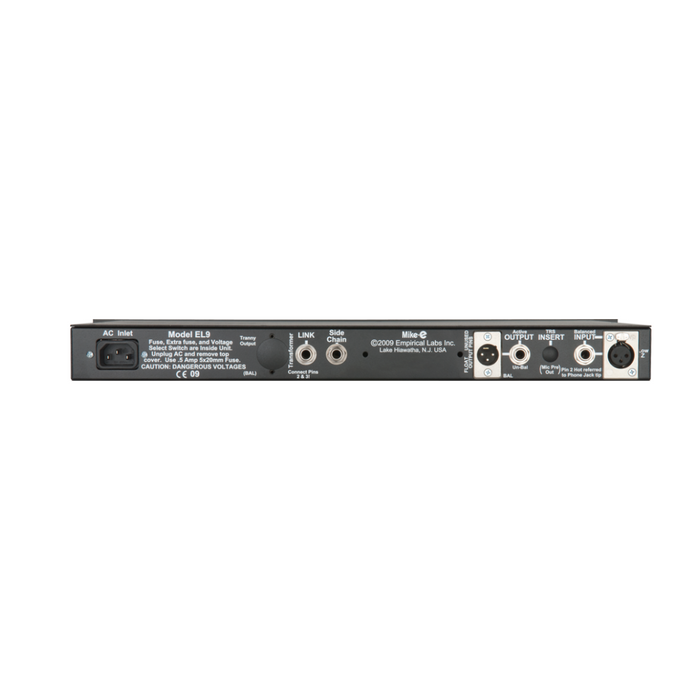

  • I/O – Transformer-coupled input, active and transformer outputs available. High quality audio caps used internally.
  • Impedance – Input impedance is above 600 Ohms at all frequencies, transformer coupled. The output impedance is less than 38 ohms. The instrument impedance is 332K Ohms.
  • Attack/decay ranges – 0.9 – 70mS attack. .15 – 1 sec.
  • Power consumption – 15 Watts max.
  • Metal chassis – single height 1.75″ high, 10″ deep, 19″ wide.
  • Shipping Information – Box Dimensions 22.5″ x 18.5″ x 3 1/4″.
