Get the complete package! SoundWire + accessories
What's included in the package:
Miniaturized USB-C audio interface

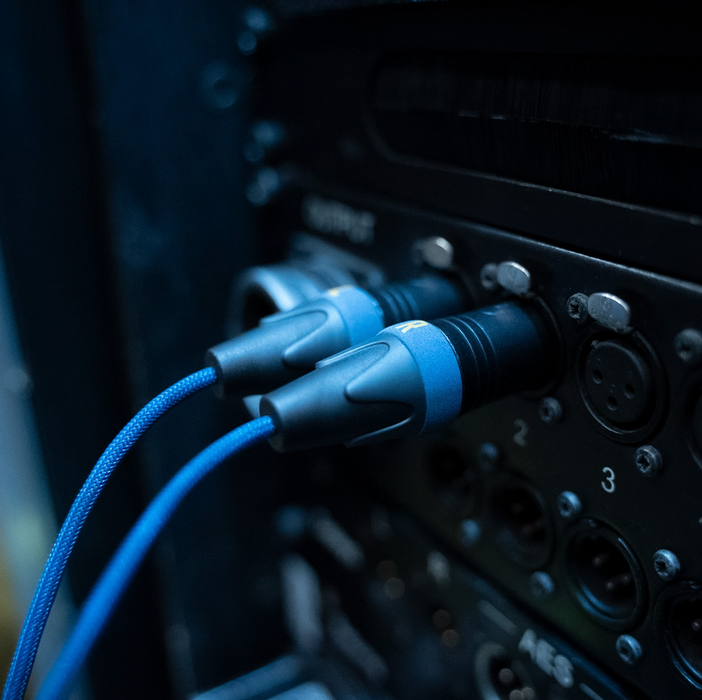

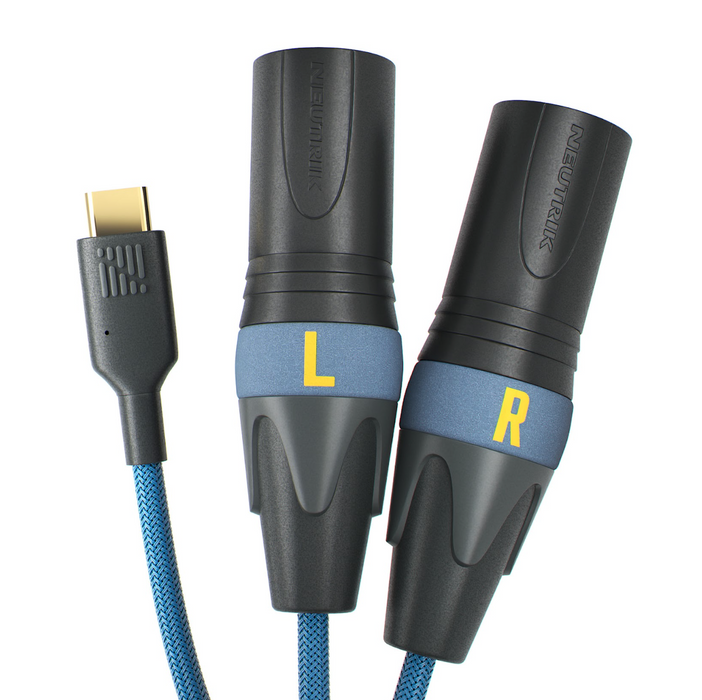

SoundWire is the first DAC-to-XLR interface cable of its kind, seamlessly transmitting 192 kHz, 32-bit audio from playback directly to the mixing console, with just one connection and nothing else in between.
Main Features:
-
192 kHz 32-bit DAC built into USB-C connector
-
Balancing and isolation transformers housed in Neutrik gold-plated XLR connectors
-
No drivers required, plug-and-play. Compatible with macOS, Windows, Android and iOS
-
Reusable Cable Tie System
-
Shielded QuadCore cables, sheathed with durable blue braided sleeve from Sonnect

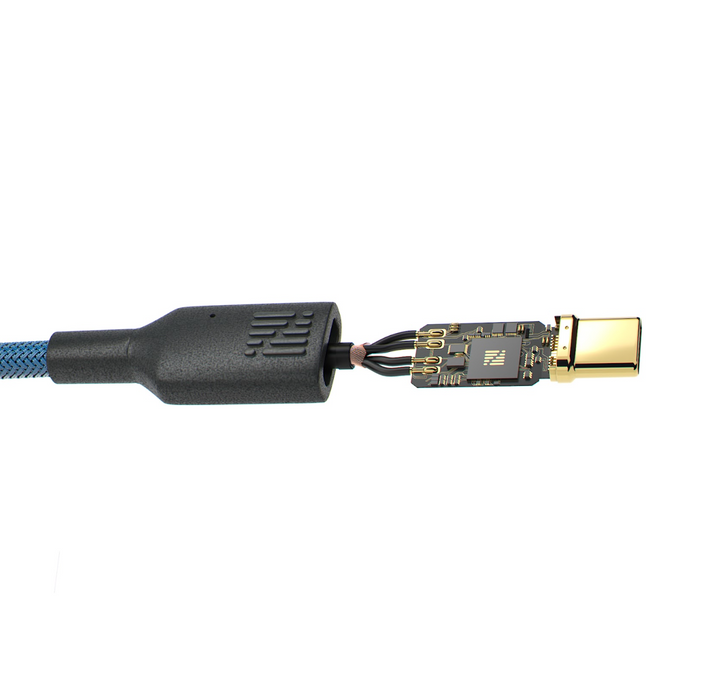

Crystal clear audio quality:

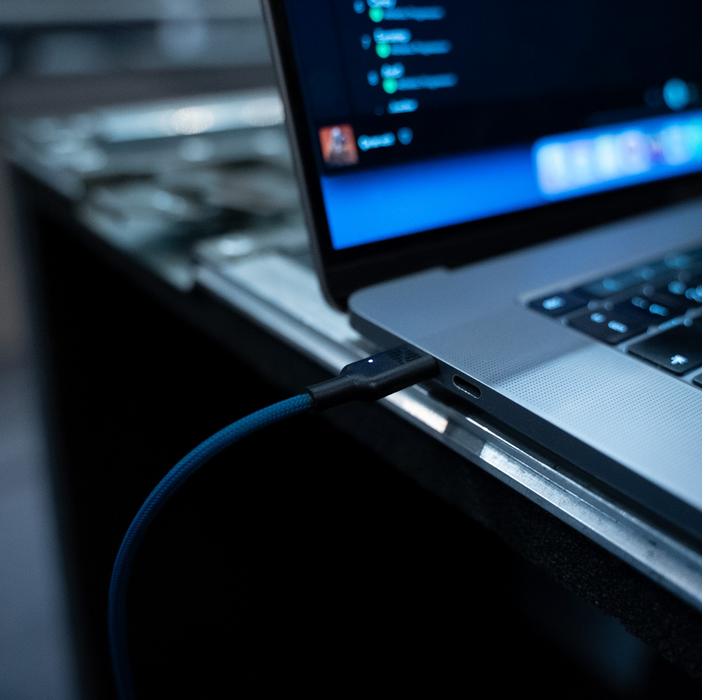

The DAC delivers crystal-clear 192 kHz, 32-bit audio. No drivers required; just connect it to your laptop, smartphone or tablet and select 'SoundWire' as the audio device.

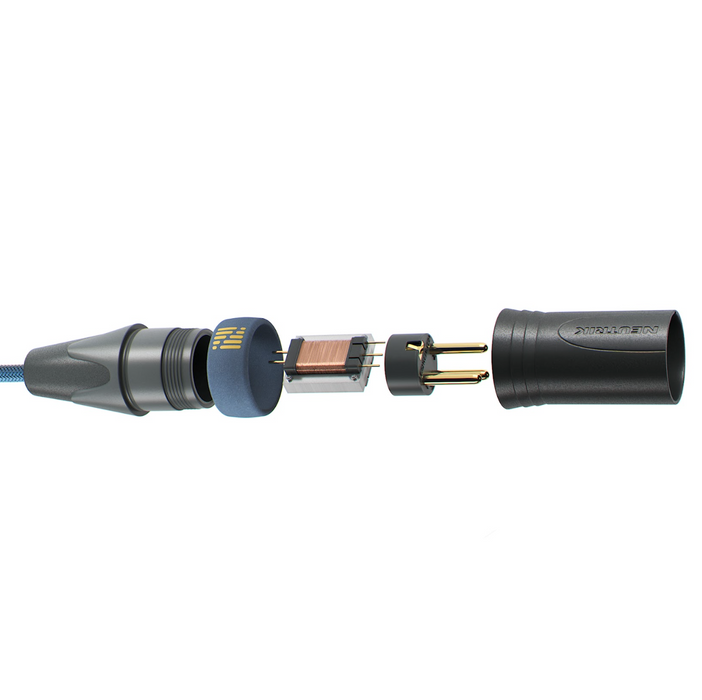

48V Protection:
Custom transformers housed in the XLR connectors balance the signal, eliminating the need for DI boxes and protecting your playback device from accidental 48V activation.

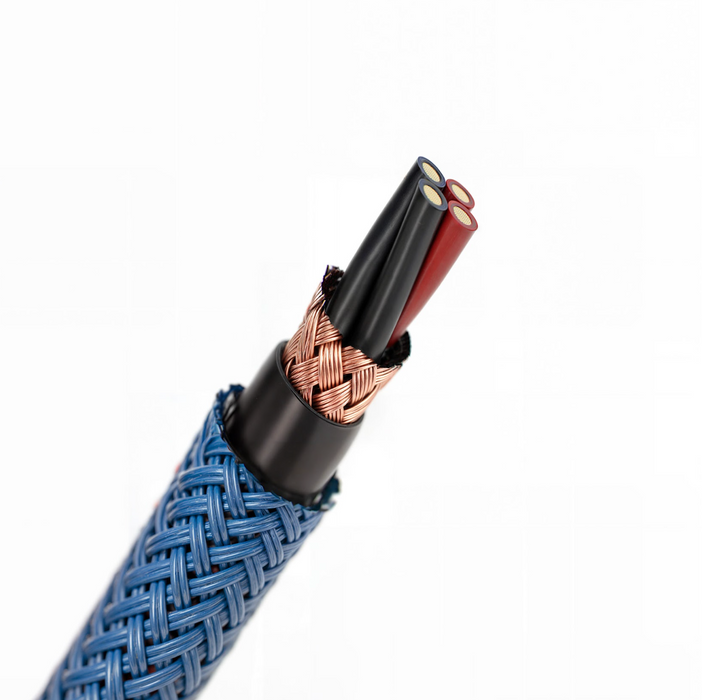

QuadCore Cables:
To ensure exceptional audio quality, interference rejection and minimize crosstalk, the cable features a shielded QuadCore wiring configuration.
Sonnect blue braid:
A custom braided sleeve of 24-gauge fiber nylon reinforces the cable, protecting it from accidental pulls or pinches. The braid is detachable from the cable, ensuring maximum flexibility and a soft touch.

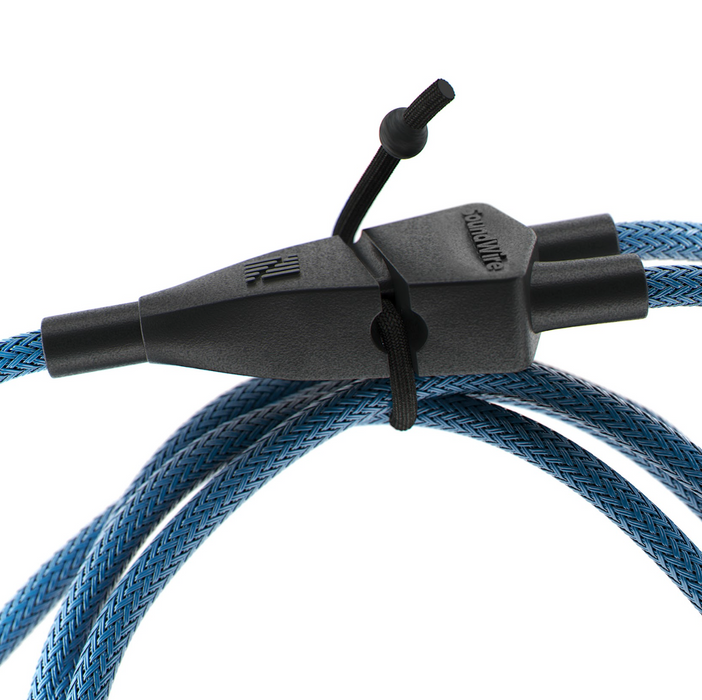

Self-tying system:
Reusable tie cord permanently attached to the Y-split, avoiding the use of tape and helping the environment by avoiding unnecessary waste.
Product specifications:
-
Channels: 2 outputs (left + right)
-
Sampling rate: 192 kHz
-
Bit depth: 32 bits
-
Dynamic range: >110 dB (A-weighted)
-
THD: -103 dB
-
THD+N: -100 dB @ -1 dBFS
-
Output Level: 0 dBu @ 0 dBFS
-
Crosstalk: <-110 dB @ 1 kHz
-
Frequency response: 20 Hz - 22 kHz
-
Output impedance: 150 Ohm
-
Current absorption: 100 mA
-
Output type: Balanced XLR with transformer
-
Digital connection: gold-plated USB Type-C
-
Analog connection: 2 x Neutrik gold-plated XLR
-
Cable length: 2.8 m | 9 feet
-
Weight: 140 g

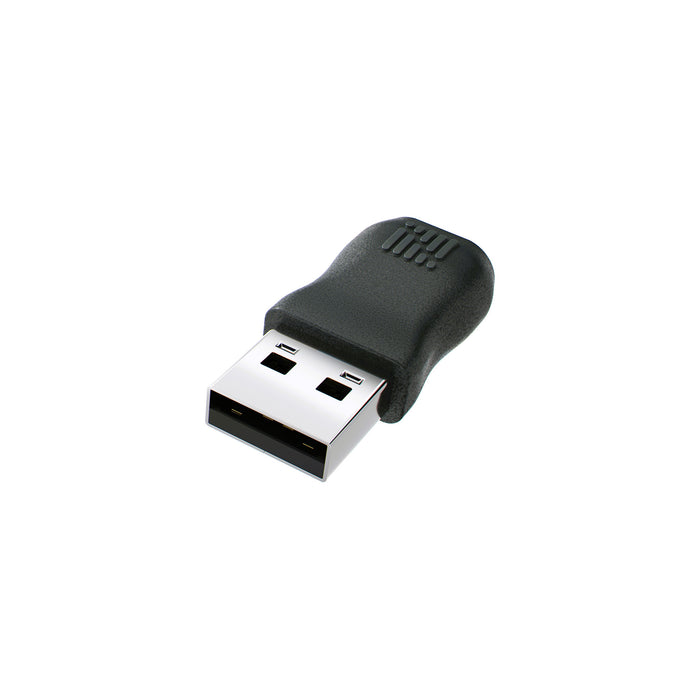

SoundWire Adapter
The Sonnect brand USB Type-A to Type-C adapter allows users to connect their SoundWire to USB-A devices. The custom design fits perfectly around the USB-C connector, creating a strong, seamless connection.
Product specifications:
USB Type-A to Type-C Adapter: 30 x 15 x 9 mm | weight: 4g

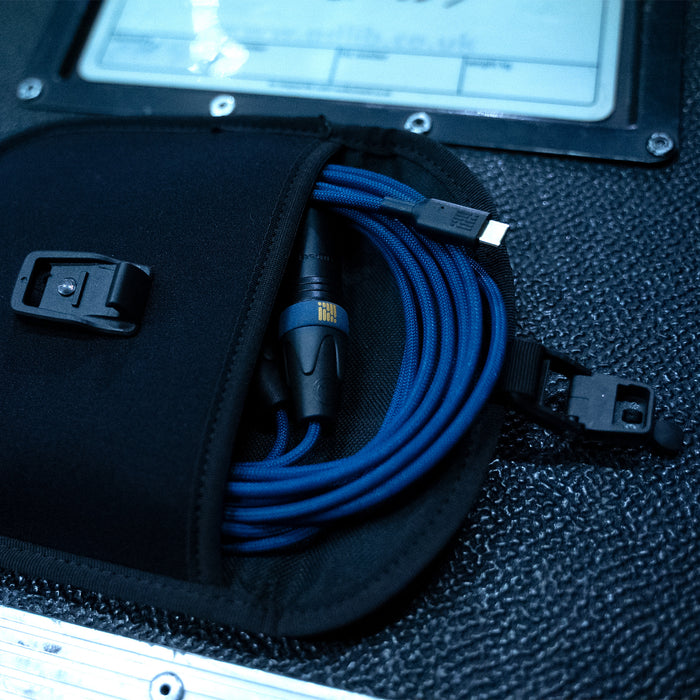

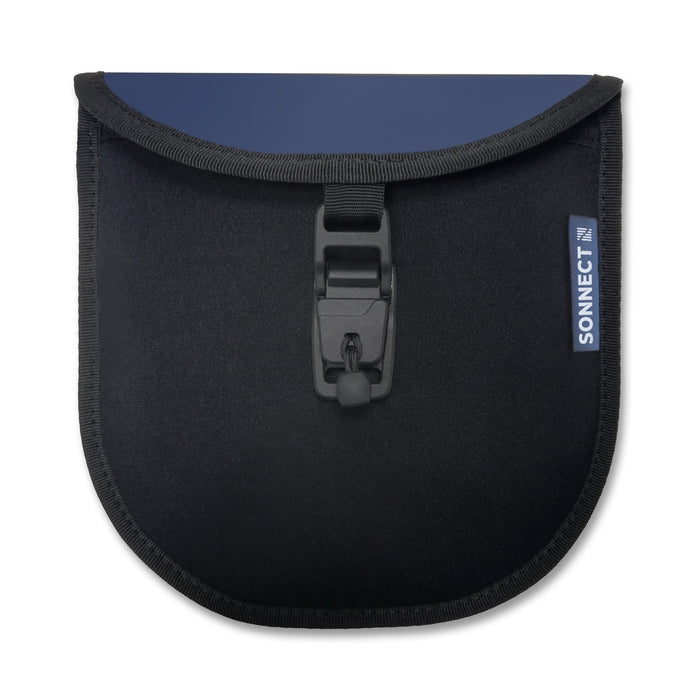

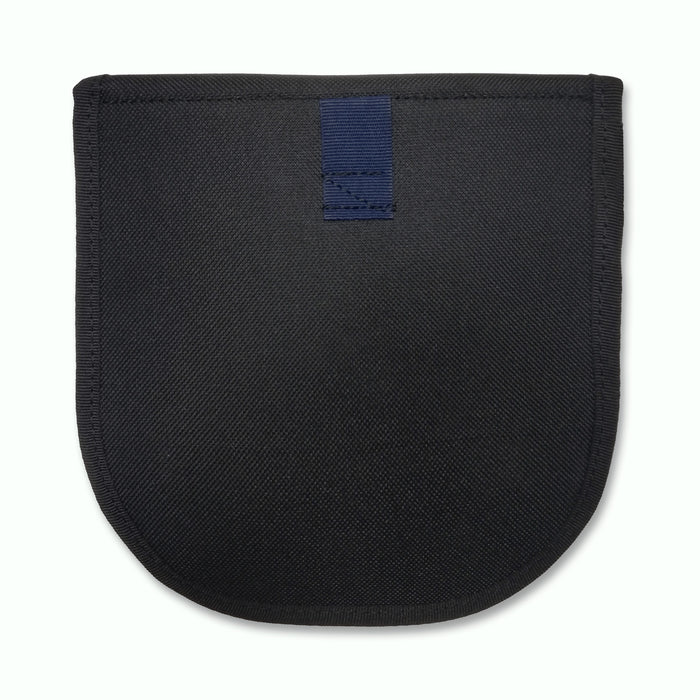

SoundWire pouch with magnetic closure
Protect your SoundWire
Made from durable fabric and advanced neoprene, our custom bag keeps your SoundWire neatly organized and easily accessible, preventing it from getting lost or tangled with other equipment when stored. The bag features Fidlock® technology, a quick-fit magnetic closure system for quick, easy and satisfying use.
Product specifications:
SoundWire Pouch: 160 x 160 x 30 mm | weight: 85 g
